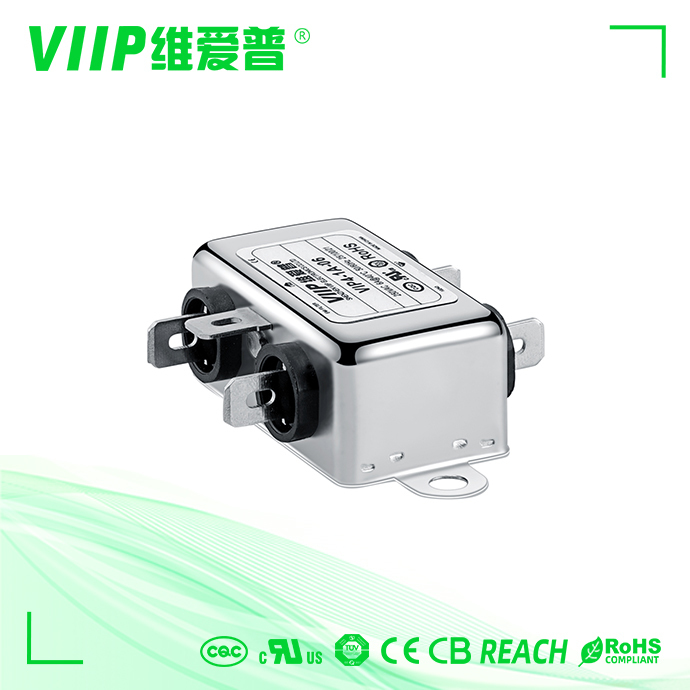

Name: 10A 250V AC EMI Filter Low Pass Power with Terminal Block
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-2B-10
Price: 14.05 USD
Availability: InStock

Markenbezeichnung:	VIIP
Modellnummer:	VIP4-2B-10
MOQ:	Verhandelbar
Preis:	Verhandlungsfähig
Verpackungsdetails:	333318
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE TUV ROHS REACH

Dokument:

VIP4-1B-10(B041Q0994) Rev 4....0.pdf

Typ:

AC Single EMI Filter

Nennspannung:

110/250VAC

Übertragungsfunktion:

Niedriger Pass

Anwendung:

Elektronische Ausrüstungen

Zertifizierung:

CE ROHS,CE CQC

HS -Code:

8548000001

Versorgungsmaterial-Fähigkeit:

2000 PC innerhalb 10-15 Tage

Hervorheben:

10A 250V AC EMI filter

low pass power filter with terminal block

AC EMI filter with terminal block

Beschreibung des Produkts

110V 250V 10A Low Pass Power AC EMI Filter With Fast On Connection

Product Overview

This 110V/250V Low Pass Power AC EMI Filter features terminal block connections and provides effective electromagnetic interference suppression for electrical equipment.

Quick Specifications

Item Number	VIP4-2B-10
Package Type	Surface Mount
Nominal Center Frequency	10KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	10A
Environmental Temperature	40°C
Operating Frequency	50/60HZ
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
Lead Time	5~15 working days

Key Features

2-stage enhanced filtering design prevents power supply interference
Multiple terminal options available for flexible installation
Various configurations available to meet different EMC test requirements
Custom solutions available based on customer specifications

Technical Specifications

Part No.	Rated Current [A]	Leakage Current [mA]	Terminals	Weight [g]
VIP4-1A-01	1A	<0.5mA	-	65
VIP4-1A-03	3A	<0.5mA	-	65
VIP4-1A-06	6A	<0.5mA	-	65
VIP4-1A-10	10A	<0.5mA	-	75
VIP4-1B-06	6A	<1.0mA	M4	140
VIP4-1B-10	10A	<1.0mA	M4	170
VIP4-1B-20	20A	<1.0mA	M4	170
VIP4-1B-30	30A	<1.0mA	M6	320
VIP4-1B-50	50A	<2.0mA	M6	600
VIP4-1B-100	100A	<2.0mA	M8	1380
VIP4-1B-150	150A	<2.0mA	M10	1900
VIP4-1B-200	200A	<2.0mA	M10	1900

Applications

Electrical and electronic equipment
Medical equipment
Datacom equipment
Office automation equipment

Frequently Asked Questions

Q: Do you offer customized products?

A: Yes, we can develop new products based on your specifications if you provide samples, drawings, or detailed requirements.

Q: Are you a factory?

A: Yes, we are an ISO9001 certified manufacturer specializing in EMI filter R&D, production, and sales since 2009.

Q: How long is the delivery time?

A: Small orders or stock items typically ship in 2-5 days. Mass production orders require 10-15 days after receiving payment. Exact timing depends on order specifics.

Q: What are your payment terms?

A: We generally require T/T in advance. For orders over $5000, we can negotiate terms such as 70% deposit with 30% balance before delivery.

Q: What certifications do you have?

A: Our products are certified to ISO9001, CE, TUV, UL, ROHS, CQC, and REACH standards.

Q: Do you provide samples?

A: Yes, we offer free samples with the customer responsible for courier costs.

Q: What after-sale services do you provide?

A: We offer free replacement within three months, free maintenance within six years, and lifetime maintenance support.
